MYF-HO5V-K, HO7V-K
Cables for general applications, cables for fixed installations
IDENTIFICATION CODE: HO5V-K/ HO7V-K
ANCIENT SYMBOLISATION: MYF
IN COMPLIANCE WITH: SR EN 50525-2-31:2011
Use
- In fixed electrical installations mounted in protection tubes under the plaster
- It is not allowed the mounting under the plaster, incorporated in concrete or under the direct action of sun rays
- For interior connections in distribution circuit panels, devices and switches
Materials

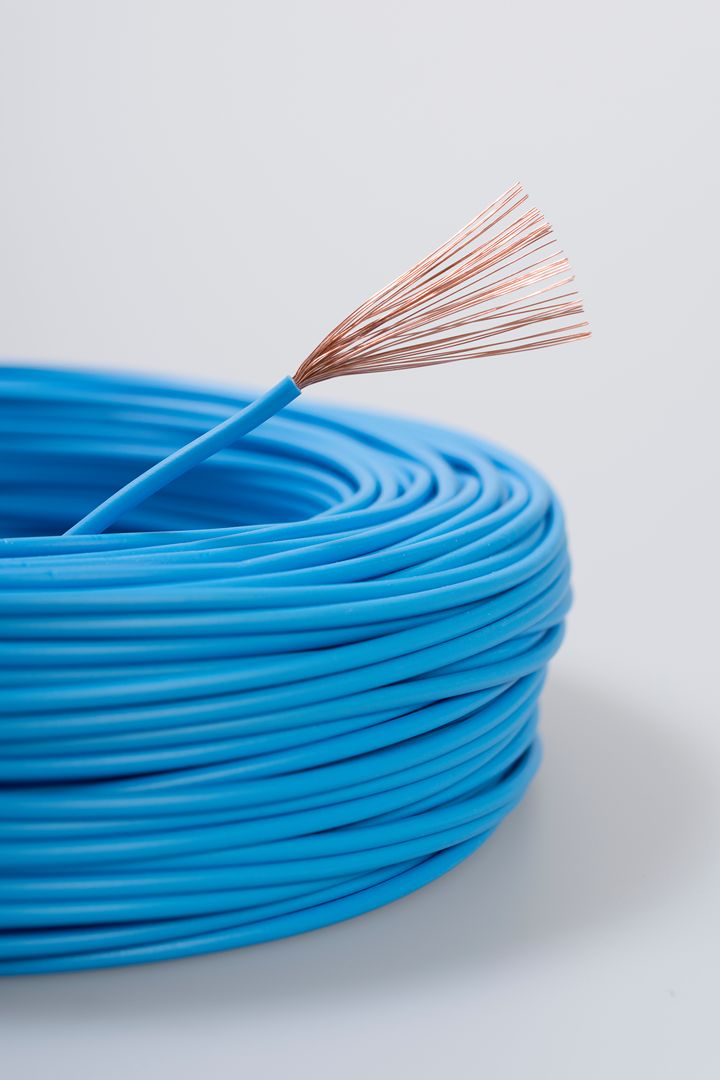

- The conductors must be of Class 5 starting from: 0,5 mm2 up to 1 mm2 for HO5V-K and from 1,5 mm2 up to 240 mm2 for HO7V-K in compliance with SR EN 60228
- The isolation must be constituted if a mixture of PVC type T1 1 in compliance with EN 50363-3 applied around the conductor
- The conductor must be of an appropriate aspect without thickenings, burns, etc.

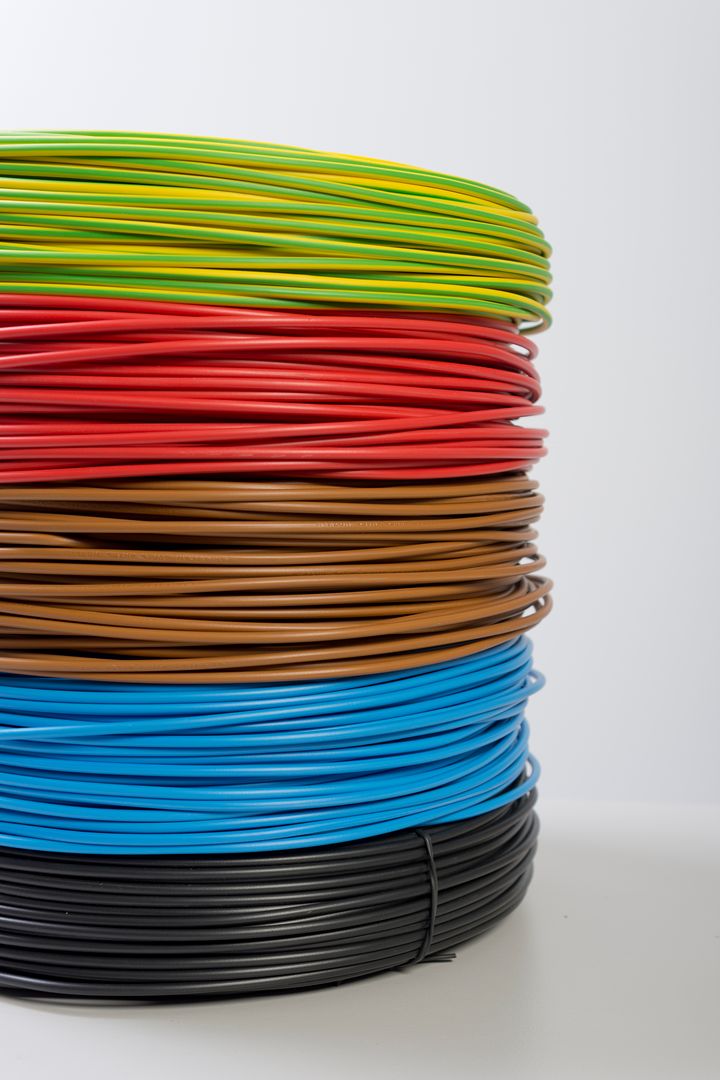

- The color is executed according to the order
Data sheet
- Product standards: SR EN 50525-2-31:2011
- Rated voltage: (Uo/U) 300/500 V for HO5V-K; (Uo/U) 450/750 for HO7V-K
- Maximum voltage for: HO5V-K 500 V c.a.; HO7V-K 750 V c.a. or 1000 V c.a. in the conditions in which one is used in metallic buildings grounded or until 750 V c.c. with grounding
- The trial voltage for HO5V-K/HO7V-K:2000/2500 V c.a.; 50 Hz; in water for 5 min.
- Minimum temperature of the surrounding: at mounting: +5°C; in exploitation: -30°C
- Maximum temperature accepted on the conductor in normal conditions of exploitation: +70°C
- Raze de îndoire minimă a cablurilor la temperaturide + 20 ° C ± 10 ° C in conditii normale este de:
4xD(diametrul cablului.) pentru aplicatii normale / standard si de 2xD pentru indoiri cu grija. - The isolated conductors are with delay at the fire spread in compliance with SR EN 60332-1-2
General data
HO5V-K IN COMPLIANCE WITH: SR EN 50525-2-31:2011
|
Nominal |
Conductor class |
The thickness of |
The exterior |
Maximum |
Resistance at |
|
0,5 |
5 |
0,6 |
2,1-2,5 |
39,0 |
0.013 |
|
0,75 |
5 |
0,6 |
2,2-2,7 |
26,0 |
0.011 |
|
1,0 |
5 |
0,6 |
2,4-2,8 |
19,5 |
0.010 |
HO7V-K IN COMPLIANCE WITH: SR EN 50525-2-31:2011
|
Nominal |
Conductor class |
The thickness of |
The exterior |
Maximum |
Resistance at |
|
1,5 |
5 |
0,7 |
2,8-3,4 |
13,3 |
0.010 |
|
2,5 |
5 |
0,8 |
3,4-4,1 |
7,98 |
0.0095 |
|
4,0 |
5 |
0,8 |
3,9-4,8 |
4,95 |
0.0078 |
|
6,0 |
5 |
0,8 |
4,4-5,3 |
3,30 |
0.0068 |
|
10,0 |
5 |
1,0 |
5,7-6,8 |
1,91 |
0.0065 |
- For temperatures higher than 20°C are used correction coefficients for the value of the electrical resistance.
EC Conformity
These products are in compliance with the European Directives:
- 2014/35EC Low voltage equipment (LVD) with all the amendments
- 2011/65 RoHs Directive
