N2XH-J
Power cables with isolation made of massive extruded dielectrics without halogens with low-emission of smoke and with increased delay at the propagation of the flame for voltages of 0,6/1 KV

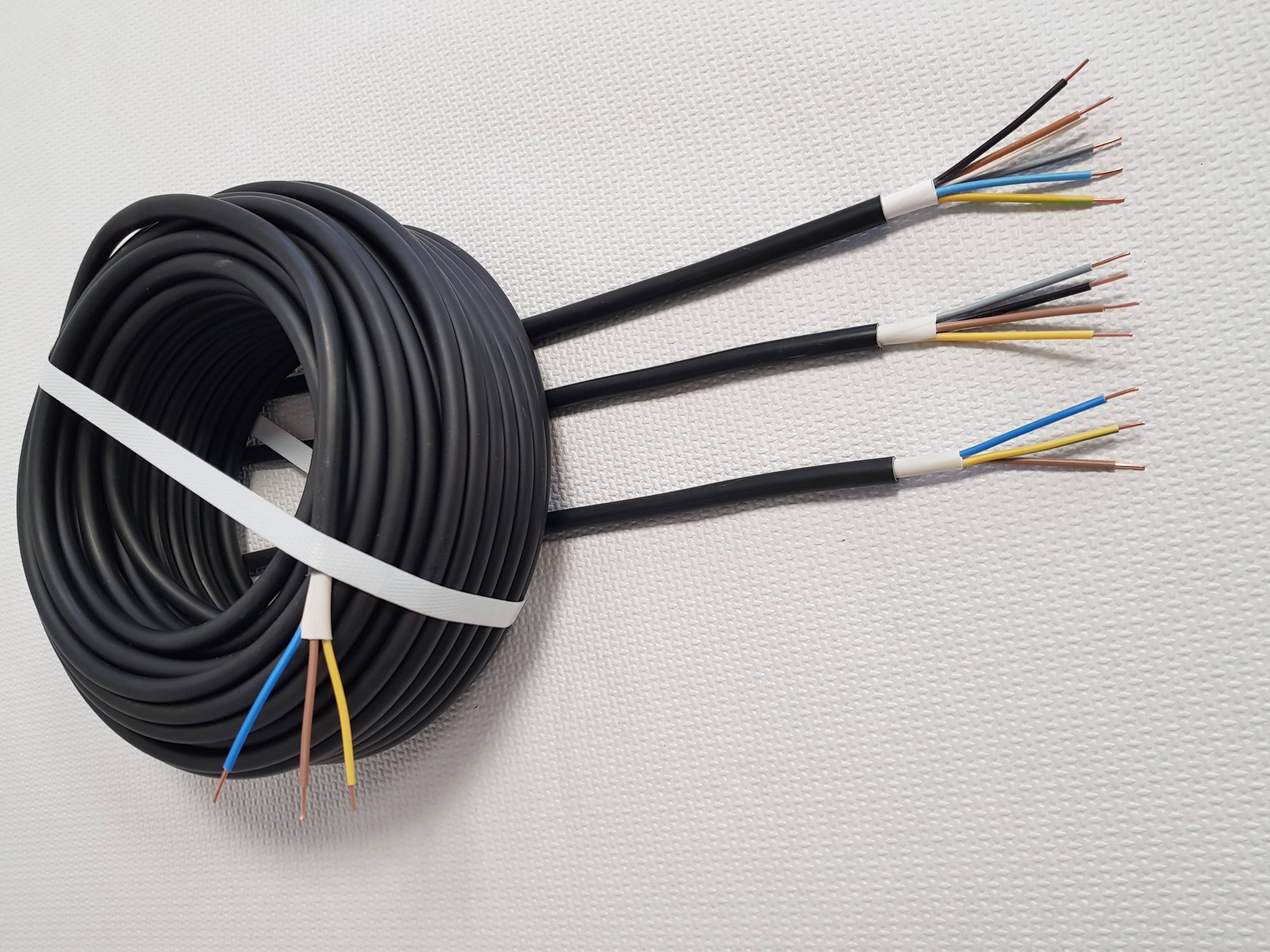

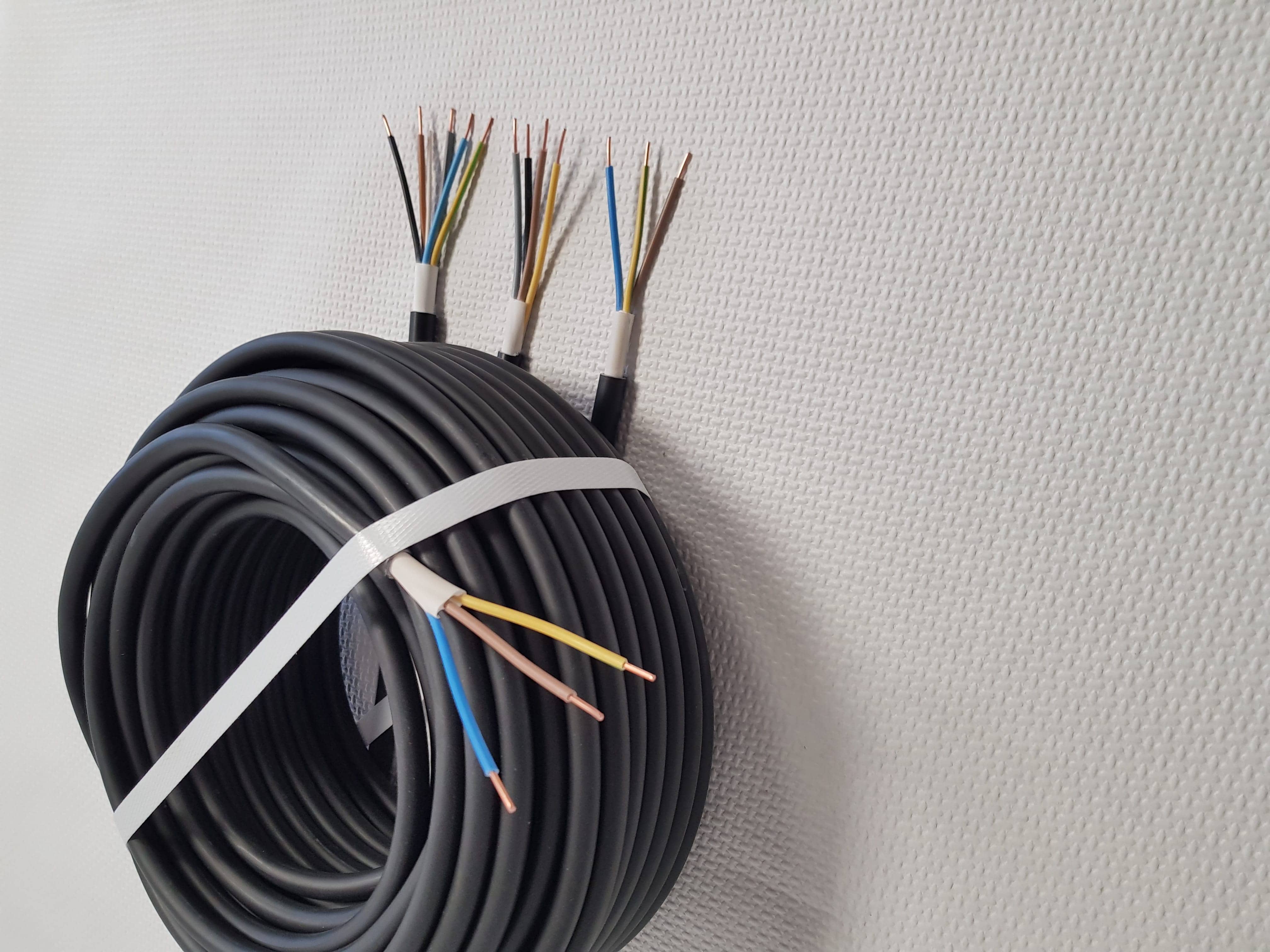

IDENTIFICATION CODE: N2XH-J
STANDARD: DIN VDE 0276-604 :2008-02 ; HD 604 S1+A1+A2+A3 :2005

Use

  • This power supply cable, with increased characteristics concerning behavior during fire, it is used in public buildings (densely populated). In these spaces, a fire can put in danger the life of a lot of people through the intoxication with toxic fumes emitted by the materials used at the isolation of the electric cords.
  • It is recommended for industrial installations, public buildings, hotels, airports, metro stations, hospitals, supermarkets, banks, hospitals, theatres, cinemas, buildings with several floors, command-and-control centers, etc.
  • It is used on fixed routes, in wet or dry areas, installed under or on the plaster, on the apparent or hidden cable channels.
  • Also, it can be also used on exterior routes and on underground lines protected by tubes or installed in cable channels.

Materials

  • Conductoarele trebuie să satisfacă prescripţiile din SR EN 60228 clasa 1
    Izolaţia trebuie să fie constituită dintr-un amestec termoplastic fara halogeni,  cu intarziere marita la propagarea flacarii tip : SOFIPLUS HZ 05GG , in accord cu HD 604

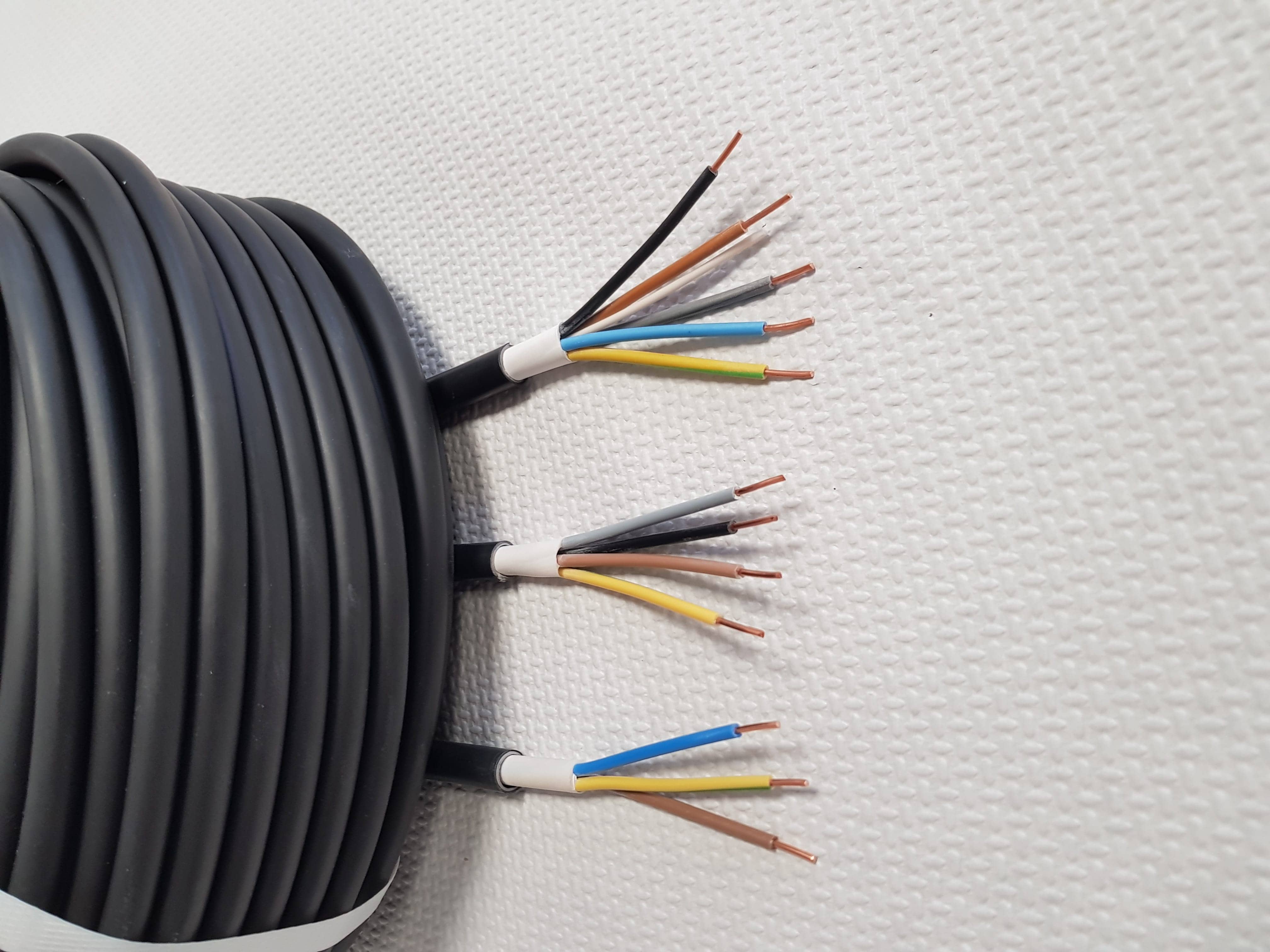

  • The isolated conductors must be hardwired between them
  • Over the wired conductors is applied a SDR isolation
  • The mantle must be constituted of a mixture of thermoplastic without halogens, with an increased delay at the spread of the flame type: SOFIPLUS HY 05GG, in compliance with HD 604
  • The isolation and the mantle must have a uniform surface, without thickenings, burns, etc.
  • The marking of the cable is made by means of printing with ink jet with the inscription: N2XH-J 3X1, 5mm2

Data sheet

  • Product standard: DIN VDE 0276-604:2008-02; HD 604 S1+A1+A2+A3:2005
  • Normal voltages: Uo/U (Um) 0,6/1 (1,2) KV
  • Trial voltage: 4kV c.a., 50 Hz, 5 minutes
  • Resistance of isolation at 90°C min. 1012Ωxcm
  • Temperatura maxima a conductorului in scurt circuit timp de 5 s este de +250°C
    Temperatura minima a mediului ambiant: la montaj: -5°C ; in exploatare :-30°C la +70°C
  • Maximum accepted temperature on the conductor within normal conditions of exploitation: +90°C
  • Rays of minimum bending of the cables at installation 15xD (cable’s diameter) for the single color cable and 12xD for the multiple color cable.
  • Maximum tensile force at installation: 50 N/mm2
  • Colors of identification of the conductor according to VDE 0293, HD308 S2
  • The cables are with an increased delay at the spread of the flame in compliance with SR EN 60332-2-4, C category, without halogens and corrosive toxic fumes in compliance with DIN EN 50267/IEC 60754 and reduced emission of fumes in compliance with DIN EN 61034/IEC 61034

General data

Nominal
section
mm

The diameter of
the conductor with
mm

The nominal
thickness of
the isolation
mm

The nominal
thickness of
the SDR
mm

The nominal
thickness of
the mantle
mm

The exterior
nominal
diameter
mm

The electrical
resistance
Ω/km 20°C max

2x1,5

1st Class

0,8

0,4

1,2

8,7

12,1

2x2,5

1st Class

0,8

0,4

1,2

9,9

7,41

3x1,5

1st Class

0,8

0,4

1,2

9,15

12,1

3x2,5

1st Class

0,8

0,4

1,2

10,4

7,41

3x4,0

1st Class

0,8

0,4

1,2

11,49

4,61

3x6,0

1st Class

0,8

0,4

1,4

13,30

3,08

4x1,5

1st Class

0,8

0,4

1,2

9,85

12,1

4x2,5

1st Class

0,8

0,4

1,2

11,3

7,41

4x4,0

1st Class

0,8

0,4

1,2

12,5

4,61

5x1,5

1st Class

0,8

0,4

1,2

10,65

12,1

5x2,5

1st Class

0,8

0,4

1,2

12,2

7,41

7x1,5

1st Class

0,8

0,4

1,2

11,45

12,1

7x2,5

1st Class

0,8

0,4

1,2

11,45

12,1
  • For temperatures higher than 20°C are used correction coefficients for the value of the electrical resistance.


EC Conformity

These products are in compliance with the European Directives:
- 2014/35EC Low voltage equipment (LVD) with all the amendments
- 2011/65 RoHs Directive

Product
Documents

Declaration of conformity

Declaration of conformity N2XH-J.pdf

Report of test fire

-

Data sheet

Date sheet – N2XH-J.pdf
