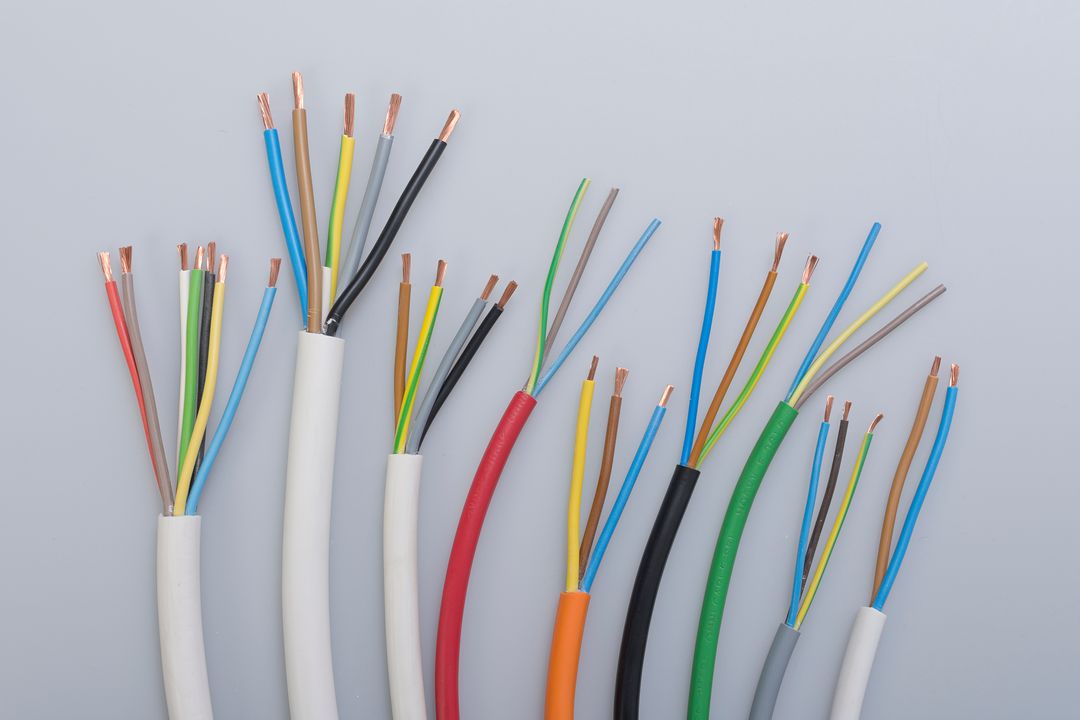

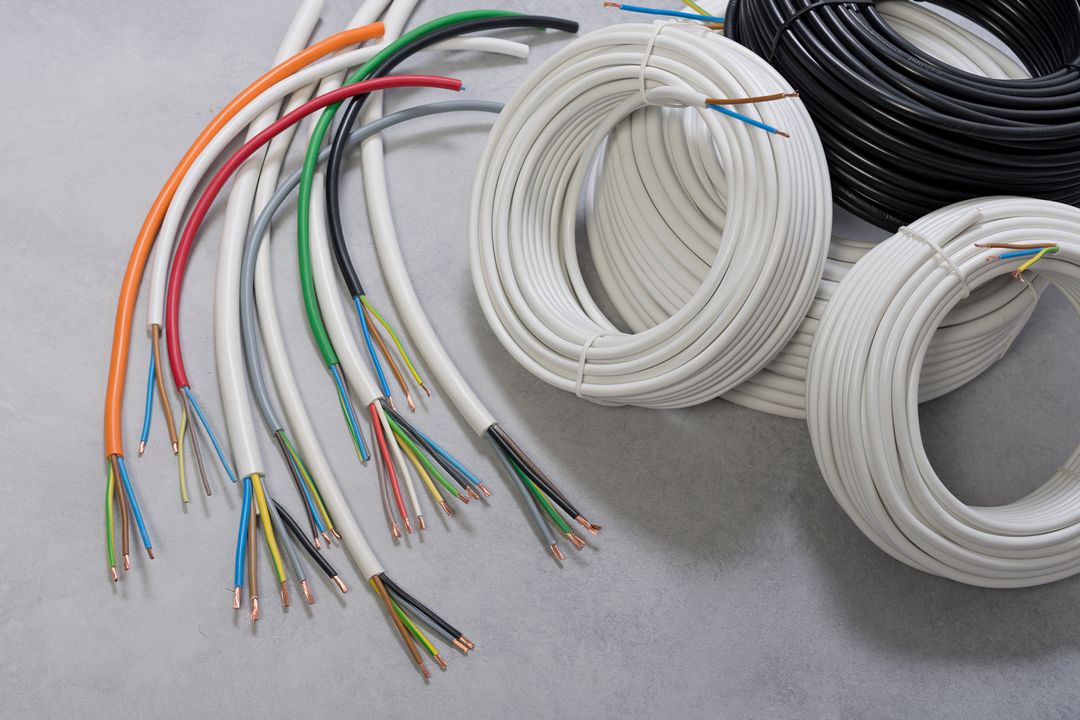

MYYM-HO5VV-F
Cables for general applications, cables for easy/normal use
IDENTIFICATION CODE: HO3VV-F / HO5VV-F/AO5VV-F
ANCIENT SYMBOLISATION: MYYM
IN COMPLIANCE WITH: SR EN 50525-2-11:2011
Use
- The cables are destined for the connection of the electrical household appliances to a fixed supply network
Materials
- The conductors must satisfy the prescriptions of SR EN 60228, Class 5, the section of the conductor and the number of isolated conductors can be: 0,5 mm2 or 0,75 mm2, - 2, 3 or 4 isolated conductors for HO3VV-F and 0,75 mm2, up to 4 mm2 2, 3, 4 or 5 isolated conductors for HO5VV-F, of 6 mm2 3, 4 or 5 isolated conductors for AO5VV-F
- The isolation must be constituted of a mixture of PVC type TI 1 in compliance with EN 50363-3 applied around the conductor of the color: green-yellow, light blue, brown, black and grey
- The isolated conductors must be wired together before applying the mantle
- The mantle must be constituted of a mixture of PVC type TM 2 in compliance with EN 50363-4-1- applied around the isolated conductors, it must fill the spaces between the isolated conductors of the color: white, black or according to the order.
- The isolation and the mantle must have a uniform surface, without thickenings, burns, etc.
- The marking of the cable is made by thermal printing/ink jet with the inscription ex: OMNI CABLE HO5VV-F 4G4 mm2 / OMNI CABLE HO5VV-F 3G1,0 mm2
Data sheet
- Product standard: SR EN 50525-2-11:2011
- Rated voltage: (Uo/U) 300/300 V for HO3VV-F; (Uo/U) 300/500 V for HO5VV-F
- Trial voltage: 2000 V c.a.; 50 Hz; in water for 5 min.
- Minimum temperature of the surrounding: at mounting: +5°C, in exploitation: -20°C
- Maximum temperature accepted on the conductor in normal conditions of exploitation: +70°C
- Minimum bending rays of the cables at temperatures of +20°C ± 10°C in normal conditions is of: 3xD (cable’s diameter.) for fixed installation and of 5xD for the free movement of the cable for cable diameters up to D = 12 mm and 4xD for fixed installation and of 6xD for the free movement of the cable for cable diameters of over D = 12 mm.
- The cables are with delay at the flame spread in compliance with SR EN 60332-1-2
General data
HO3VV-F IN COMPLIANCE WITH:SR EN 50525-2-11:2011
|
Nominal |
Maximum |
The thickness of |
The thickness |
Average |
Maximum |
Resistance |
|
2x0,50 |
0,21 |
0,5 |
0,6 |
4,6/5,9 |
39 |
0,011 |
|
2x0,75 |
0,21 |
0,5 |
0,6 |
4,9/6,3 |
26 |
0,010 |
|
3G0,50 |
0,21 |
0,5 |
0,6 |
4,9/6,3 |
39 |
0,011 |
|
3G0,75 |
0,21 |
0,5 |
0,6 |
5,2/6,7 |
26 |
0,010 |
|
4G0,50 |
0,21 |
0,5 |
0,6 |
5,4/6,9 |
39 |
0,011 |
|
4G0,75 |
0,21 |
0,5 |
0,6 |
5,7/7,3 |
26 |
0,010 |
HO5VV-F IN COMPLIANCE WITH: SR EN 50525-2-11:2011
|
Nominal |
Maximum |
The thickness of |
The thickness |
Average |
Maximum |
Resistance |
|
2x0,75 |
0,21 |
0,6 |
0,8 |
5,7-7,2 |
26 |
0,011 |
|
2x1 |
0,21 |
0,6 |
0,8 |
5,9-7,5 |
19,5 |
0,010 |
|
2x1,5 |
0,26 |
0,7 |
0,8 |
6,8-8,6 |
13,3 |
0,010 |
|
2x2,5 |
0,26 |
0,8 |
1,0 |
8,4-10,6 |
7,98 |
0,0095 |
|
2x4 |
0,31 |
0,8 |
1,1 |
9,7-12,1 |
4,95 |
0,0078 |
|
3G0,75 |
0,21 |
0,6 |
0,8 |
6,0-7,6 |
26 |
0,011 |
|
3G1 |
0,21 |
0,6 |
0,8 |
6,3-8,0 |
19,5 |
0,010 |
|
3G1,5 |
0,26 |
0,7 |
0,9 |
7,4-9,4 |
13,3 |
0,010 |
|
3G2,5 |
0,26 |
0,8 |
1,1 |
9,2-11,4 |
7,98 |
0,0095 |
|
3G4 |
0,31 |
0,8 |
1,2 |
10,5-13,1 |
4,95 |
0,0078 |
|
4G0,75 |
0,21 |
0,6 |
0,8 |
6,6-8,3 |
26 |
0,011 |
|
4G1 |
0,21 |
0,6 |
0,8 |
7,1-9,0 |
19,5 |
0,010 |
|
4G1,5 |
0,26 |
0,7 |
0,9 |
8,4-10,5 |
13,3 |
0,010 |
|
4G2,5 |
0,26 |
0,8 |
1,1 |
10,1-12,5 |
7,98 |
0,0095 |
|
4G4 |
0,31 |
0,8 |
1,2 |
11,5-14,3 |
4,95 |
0,0078 |
|
5G0,75 |
0,21 |
0,6 |
0,9 |
7,4-9,3 |
26 |
0,011 |
|
5G1 |
0,21 |
0,6 |
0,9 |
7,8-9,8 |
19,5 |
0,010 |
|
5G1,5 |
0,26 |
0,7 |
1,1 |
9,3-11,6 |
13,3 |
0,010 |
|
5G2,5 |
0,26 |
0,8 |
1,2 |
11,2-13,9 |
7,98 |
0,0095 |
|
5G4 |
0,31 |
0,8 |
1,4 |
13,0-16,1 |
4,95 |
0,0078 |
AO5VV-F IN COMPLIANCE WITH: SR EN 50525-2-11:2011
|
Nominal |
Maximum |
The thickness of |
The thickness |
Average |
Maximum |
Resistance |
|
3G6 |
0,31 |
0,8 |
1,2 |
13,2/14,5 |
3,30 |
0,0078 |
|
4G6 |
0,31 |
0,8 |
1,6 |
14,5/15,5 |
3,30 |
0,0078 |
|
5G6 |
0,31 |
0,8 |
1,6 |
16/17 |
3,30 |
0,0078 |
- For temperatures higher than 20°C are used correction coefficients for the value of the electrical resistance.
EC Conformity
These products are in compliance with the European Directives:
- 2014/35EC Low voltage equipment (LVD) with all the amendments
- 2011/65 RoHs Directive
The products from the table written with bold characters have the branding approval:
- SR EN 50525-2-11:2011 DIN EN 50525-2-11(VDE0285-525-2-11):2012-01;EN 50525-2-11:2011
