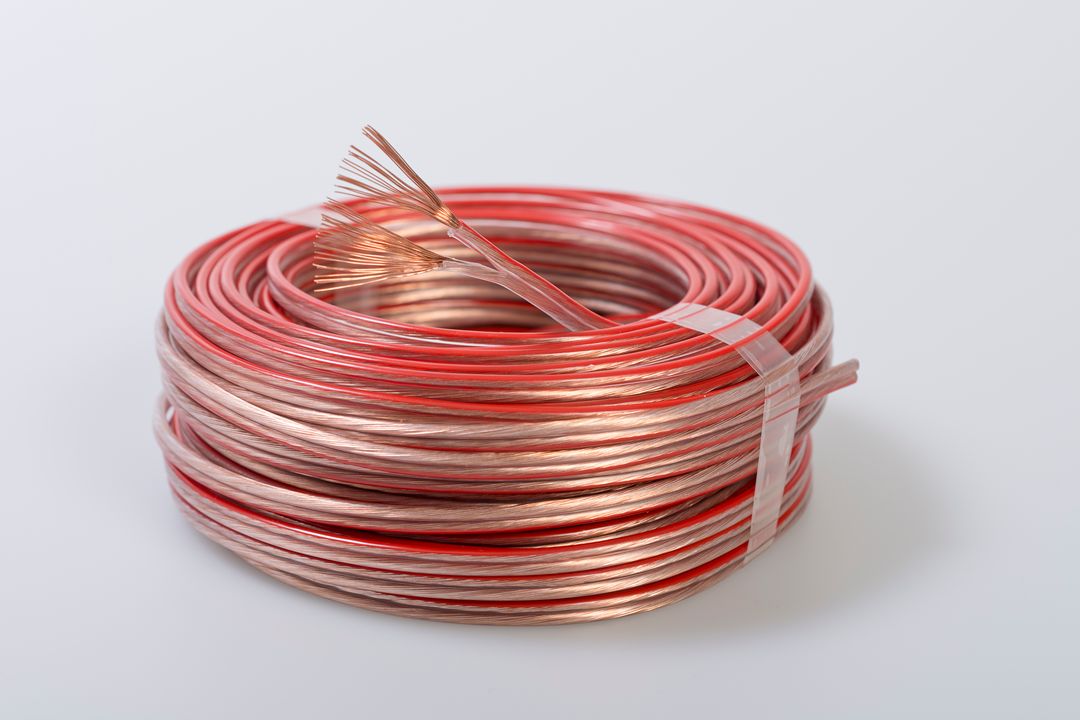

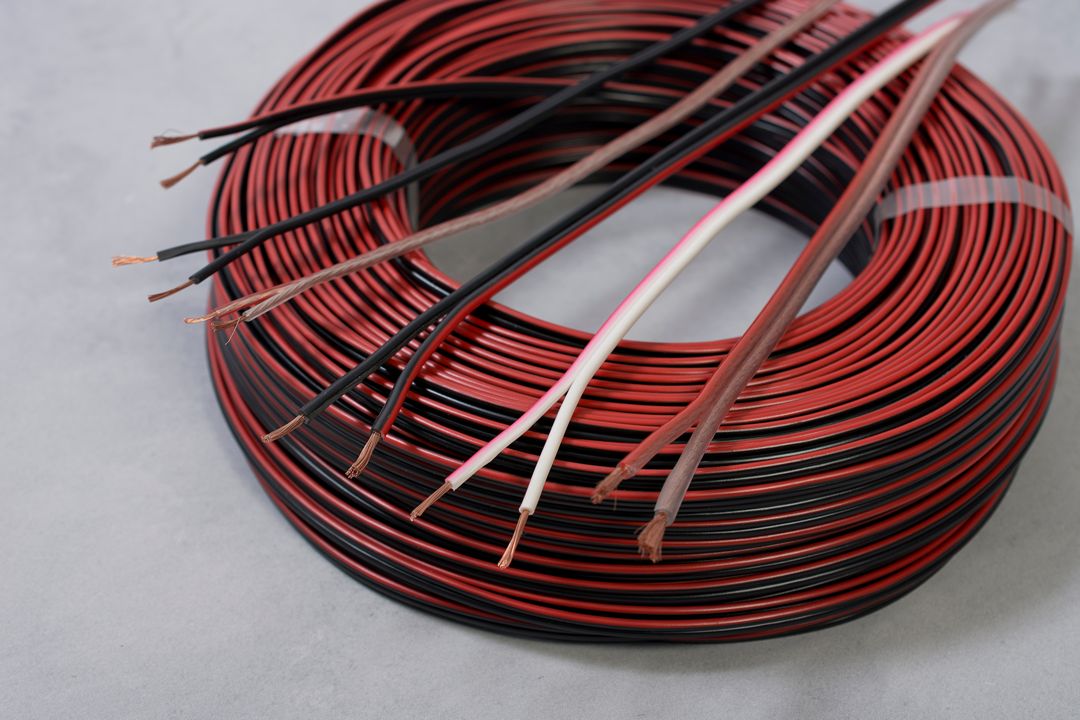

MYUP-HO3VH-H
Flat flexible cables without mantle

IDENTIFICATION CODE: HO3VH-H
ANCIENT SYMBOLISATION: MYUP
IN COMPLIANCE WITH: SR HD 21.5 S3 :2002

Use

  • Flexible cable for household appliances with very low mechanical strain. It is not recommended the use outside buildings and high temperature.

Materials

  • The conductors must satisfy the prescriptions of SR EN 6028, Class 6, the section of the isolated conductors can be of: 0, 5 mm2 or 0,75 mm2
  • The isolation must be constituted of a mixture of PVC type TI 2 in compliance with EN 50363-3 applied around each conductor
  • The conductors must be disposed in parallel and covered by isolation
  • The isolation must have a ditch between the conductors, on both sides, in order to ease the separation of the constitutive conductors and to have a uniform surface, without thickening, burns, etc.

Data sheet

  • Product standard: SR HD 21.5 S3:2002
  • Rated voltage: (Uo/U) 300/300 V
  • Trial voltage: 2000 V c.a.; 50 Hz; in water for 5 min.
  • Minimum temperature of the surrounding: at mounting: +5°C, in exploitation: -20°C
  • Maximum temperature accepted on the conductor in normal conditions of exploitation: +70°C
  • Minimum bending rays of the cables at temperatures of +20°C ± 10°C in normal conditions is of: 10xD (cable’s height.)
  • The cables are with delay at the flame spread in compliance with SR EN 60332-1-2

Nominal
section
mm2

Maximum
diameter of the
wires from the
conductor in
mm

The thickness
of the isolatio
Nominal value
mm

Average
exterior
dimensions
Inferior/superior limit

Maximum
electrical
resistance
at 20°C Ω/km"

Resistance at
minimum isolation
at 70°C MΩkm"

2x0,50

0,16

0,8

2,4x4,9/3,0x5,9

39

0,016

2x0,75

0,16

0,8

2,6x5,2/3,1x6,3

26

0,014

  • For temperatures higher than 20°C are used correction coefficients for the value of the electrical resistance.


EC Conformity

This product is in compliance with the European Directives:
- 2014/35EC Low voltage equipment (LVD) with all the amendments
- 2011/65 RoHs Directive
