XMVK
Cable of easy installation for connections

IDENTIFICATION CODE: XMVK 450/750 V
STANDARD: -

Use

  • This power cord with increased characteristics concerning the behavior at fire is used in public buildings
  • It is used on fixed tracks in wet or dry areas wired under or on the plaster on apparent or hidden cable channels. Also, it can be used on exterior tracks and underground lines with tubes or wired in cable channels.

Structure

  • Conductors made of massive one-color CU in compliance with VDE0295 or SR EN 60228, 1st Class
  • The conductors’ isolator is executed of XLPE + ACCELERANT in brown, blue, grey, black
  • Over the covered conductors is placed a filling mixture – sdr
  • The exterior mantle PVC type 305 GREY COLOR (RAL 7012) in compliance with EN 50363

Advantages

  • Mechanical resistance to impact: good
  • Bending factor at placement: 10xD
  • Reaction to the flame spread in compliance with EN 60332

Data sheet

  • Power cord in compliance with DIN VDE 0276 section 604
  • The conductors’ resistance to 20°C is in compliance with VDE 0295 SI SR EN 60228, 1st Class s
  • Temperature range – during installation: -20°C up to +90°C
  • Maximum work temperature at the level of the conductor is 90°C

General data

Product

The thickness of
the isolation

Approximate
SDR thickness

Approximate
mantel thickness

Approximate exterior
diameter

Electrical resistance
at maximum 20°C

XMVK 2X1.5

0.6

0.4

1.4

8.6

12.1

XMVK 2X2.5

0.6

0.4

1.4

9.4

7.41

XMVK 3X1.5

0.6

0.4

1.4

9.0

12.1

XMVK 3X2.5

0.6

0.4

1.4

9.9

7.41

XMVK 4X1.5

0.6

0.4

1.4

9.7

12.1

XMVK 4X2.5

0.6

0.4

1.4

10.6

7.41

XMVK 5X1.5

0.6

0.4

1.4

10.4

12.1

XMVK 5X2.5

0.6

0.4

1.4

11.5

7.41

  • For temperatures higher than 20°C are used correction coefficients for the value of the electrical resistance.


EC Conformity

These products are in compliance with the European Directives:
- 2014/35EC Low voltage equipment (LVD) with all the amendments
- 2011/65 RoHs Directive

Product
Documents

Declaration of conformity

Report of test fire

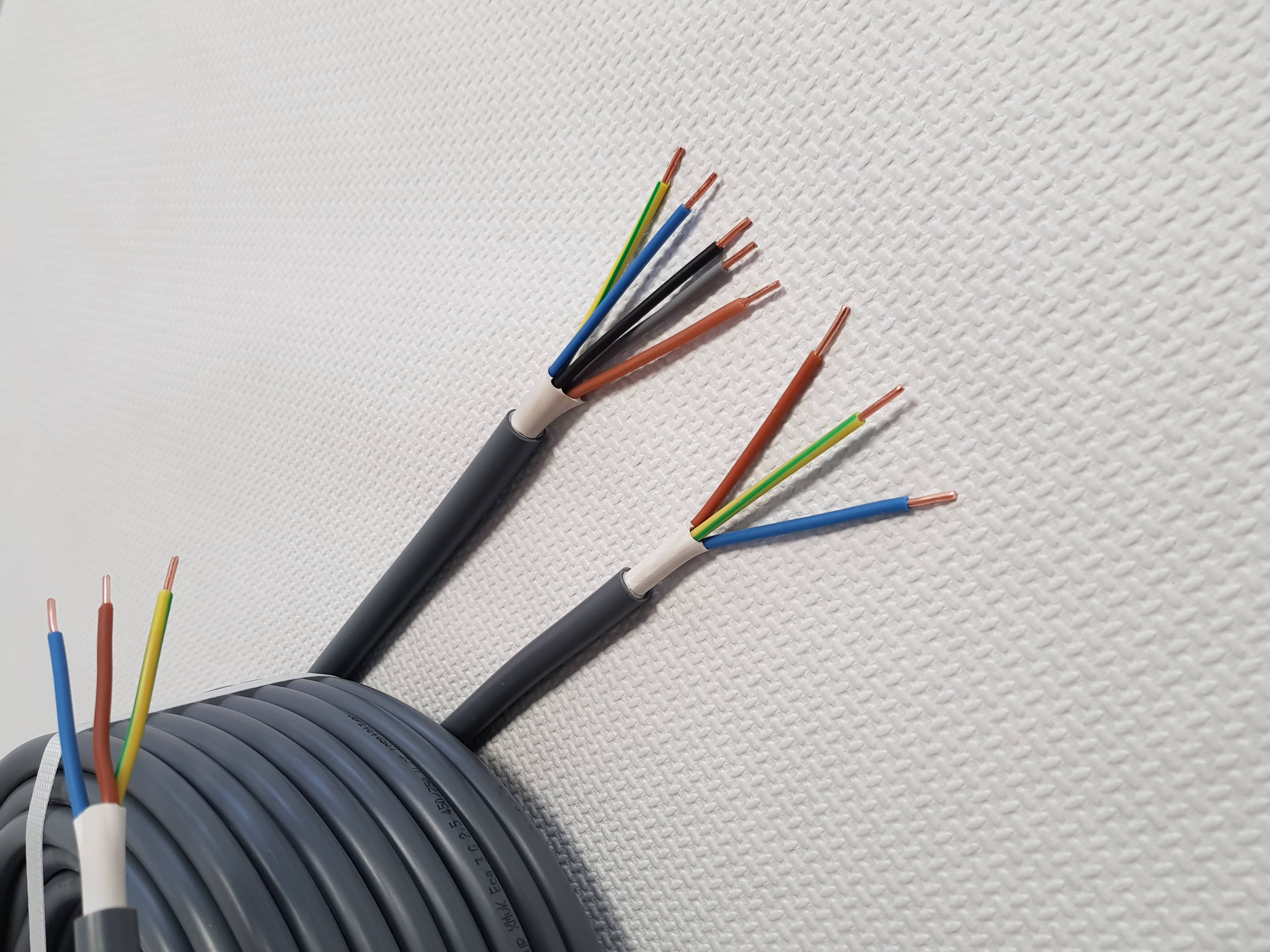

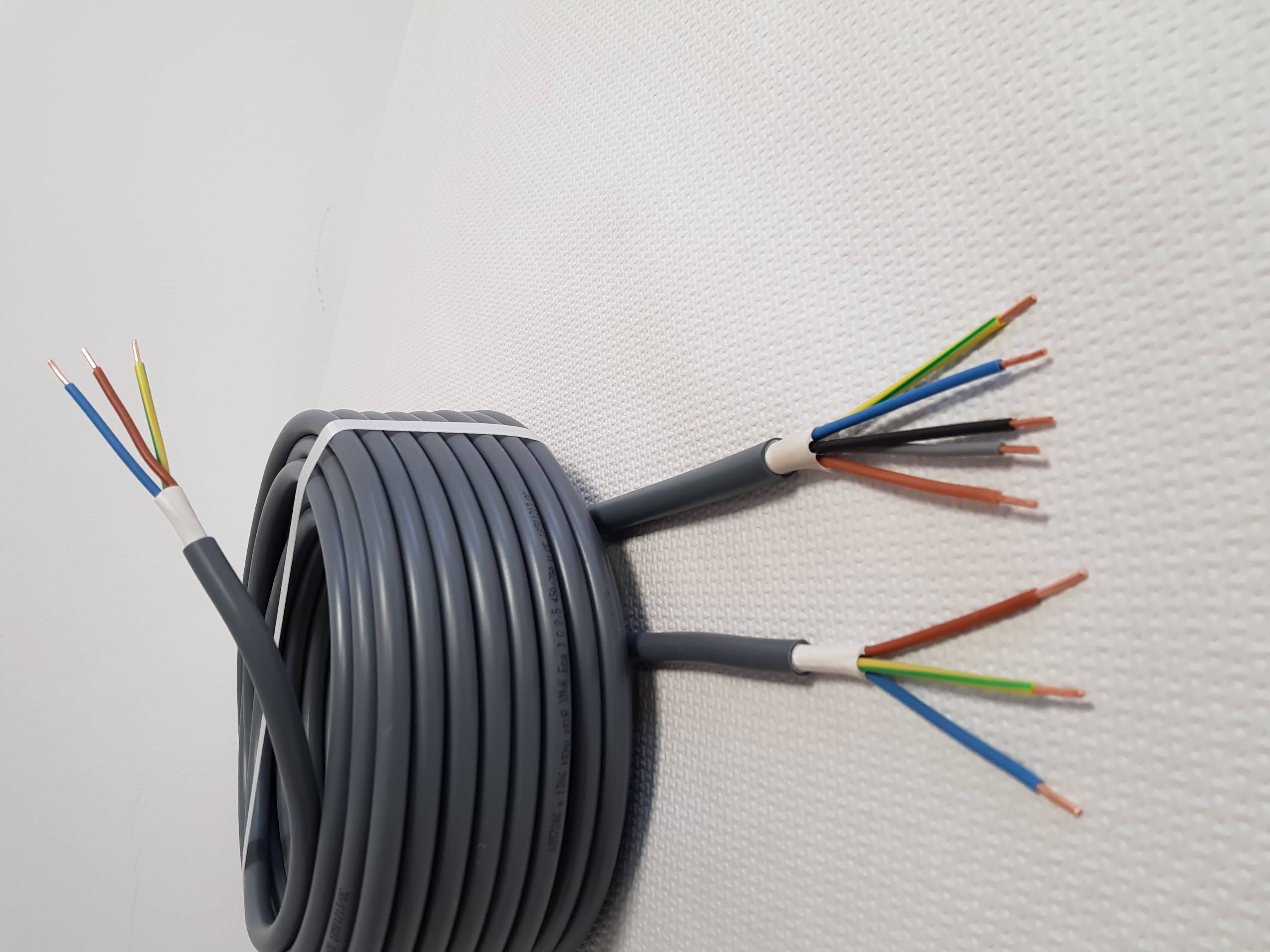

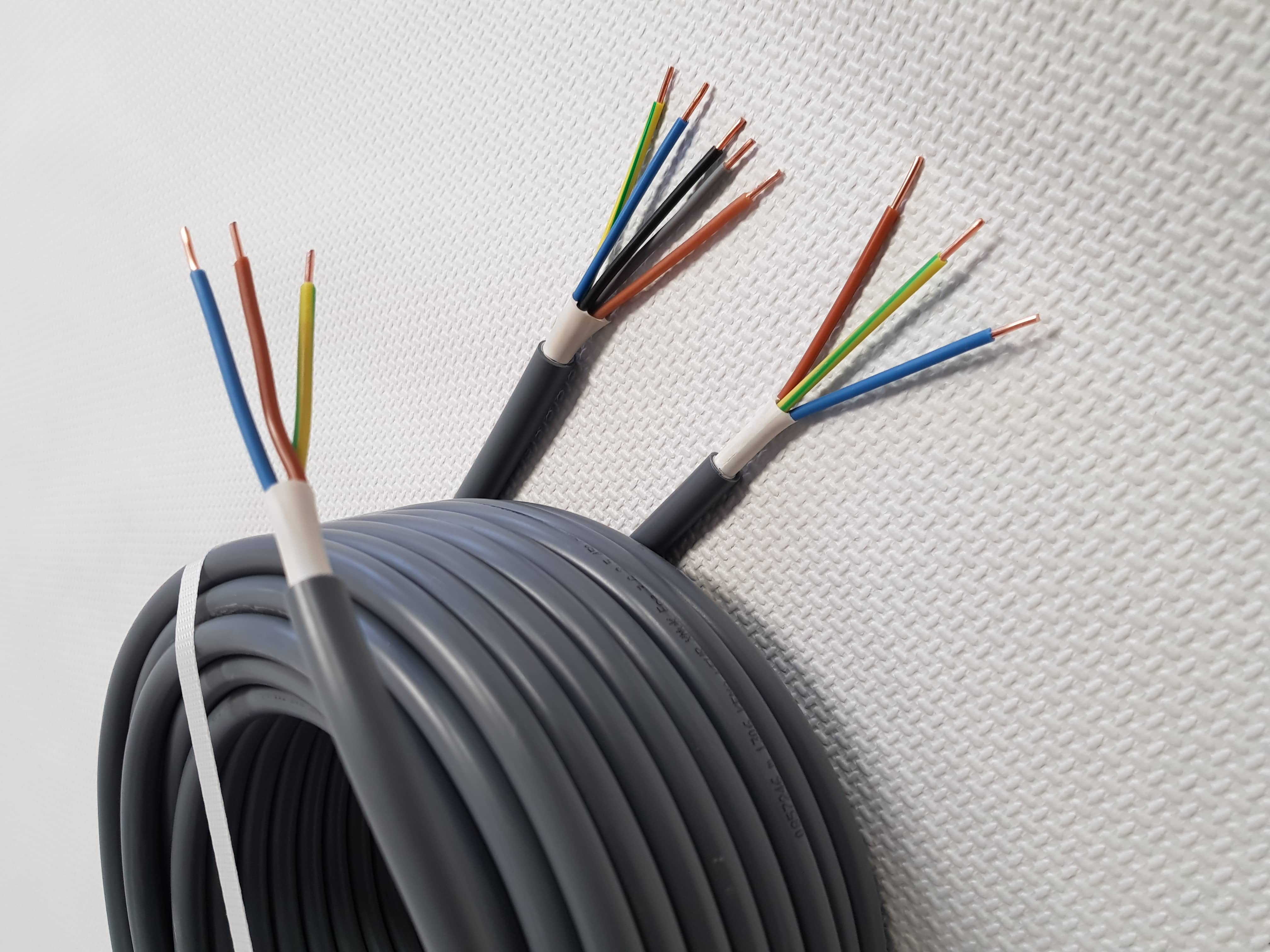

Galerie
