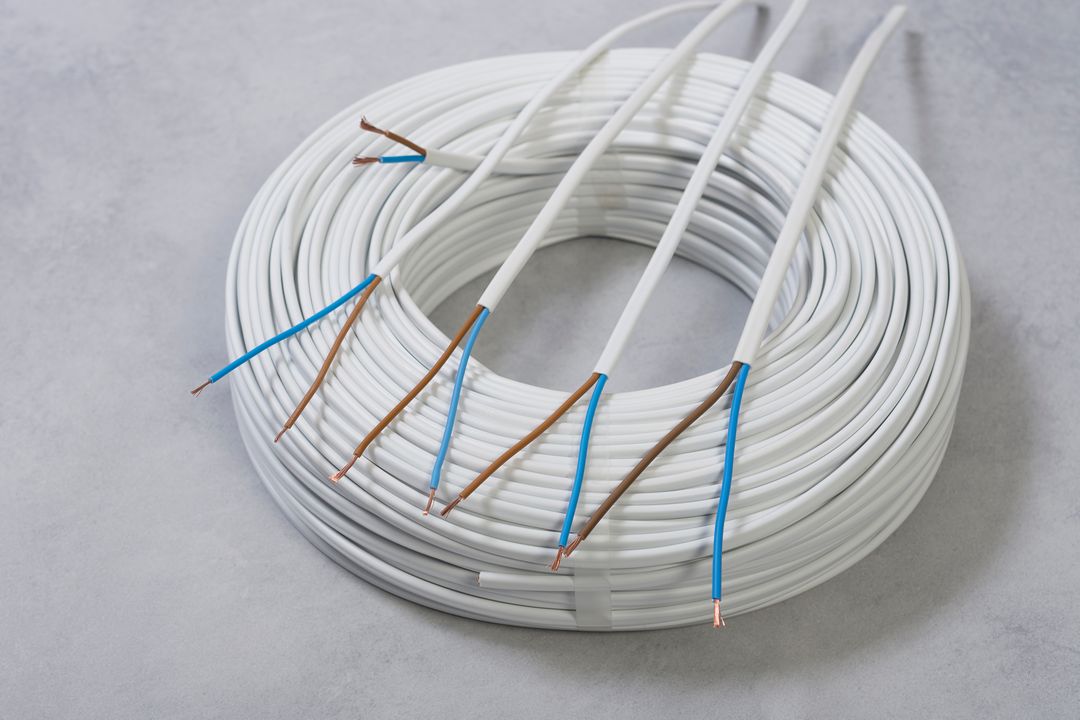

MYYUP-HO5VVH2-F
Cables for general applications, cables for easy/normal use

IDENTIFICATION CODE: HO3VVH2-F / HO5VVH2-F
ANCIENT SYMBOLISATION: MYYUP
CONFORM: SR EN 50525-2-11:2011

Use

  • The cables are destined for the connection of electrical household appliances to a fixed supply network.

Materials

  • The conductors must satisfy the prescriptions of SR EN 6028, Class 6, the section of the isolated conductors can be of: 0, 5 mm2 or 0,75 mm2
  • The isolation must be constituted of a mixture of PVC type TI 2 in compliance with EN 50363-3 applied around each conductor
  • The conductors must be disposed in parallel and covered by isolation
  • The isolation must have a ditch between the conductors, on both sides, in order to ease the separation of the constitutive conductors and to have a uniform surface, without thickening, burns, etc.

Data sheet

  • Product standard: SR EN 50525-2-11:2011
  • Rated voltage: (Uo/U) 300/300 V for HO3VVH2-F; (Uo/U) 300/500 V for HO3VVH2-F
  • Trial voltage: 2000 V c.a.; 50 Hz; in water for 5 min.
  • Minimum temperature of the surrounding: at mounting: +5°C, in exploitation: -20°C
  • Maximum temperature accepted on the conductor in normal conditions of exploitation: +70°C
  • Minimum bending rays of the cables at temperatures of +20°C ± 10°C in normal conditions is of: 3xD (cable’s diameter.) for fixed installation and 5xD for the free movement of the cable.
  • The cables are with delay at the flame spread in compliance with SR EN 60332-1-2

HO3VVH2-F IN COMPLIANCE WITH: SR EN 50525-2-11:2011

Nominal
section
mm2

Maximum
diameter of the
wires from the
conductor in
mm

The thickness of
the isolation
Nominal value
mm

The thickness
of the mantle
Nominal value
mm

Average
exterior
dimensions
Inferior/superior limit

Maximum
electrical
resistance
at 20°C Ω/km

Resistance
at isolation
at the nominal
temperature
MΩ.km

2x0,50

0,21

0,5

0,6

3,0x4,9/3,7x5,9

39

0,011

2x0,75

0,21

0,5

0,6

3,2x5,2/3,8x6,3

26

0,010

EC Conformity

This product is in compliance with the European Directives:
- 2014/35EC Low voltage equipment (LVD) with all the amendments
- 2011/65 RoHs Directive
- HO3VVH2-F 2x0,75 Has the brand approval: (HAR) SR EN 50525-2-11:2011 (VDE)
DIN EN 50525-2-11(VDE0285-525-2-11):2012-01;EN 50525-2-11:2011



HO5VVH2-F IN COMPLIANCE WITH: SR EN 50525-2-11:2011

Nominal
section
mm2

Maximum
diameter of the
wires from the
conductor in
mm

The thickness of
the isolation
Nominal value
mm

The thickness
of the mantle
Nominal value
mm

Average
exterior
dimensions
Inferior/superior limit

Maximum
electrical
resistance
at 20°C Ω/km

Resistance
at isolation
at the nominal
temperature
MΩ.km

2x0,75

0,21

0,6

0,8

3,7x6,0/4,5x7,2

26

0,011

2x1

0,21

0,6

3,9x6,2/4,7x7,5

19,5

0,010

2x1,5

0,26

0,7

0,8

4,2x7,0/5,2x8,6

13,3

0,010
  • For temperatures higher than 20°C are used correction coefficients for the value of the electrical resistance


EC Conformity

This product is in compliance with the European Directives:
- 2014/35EC Low voltage equipment (LVD) with all the amendments
- 2011/65 RoHs Directive
