ADAPTORS

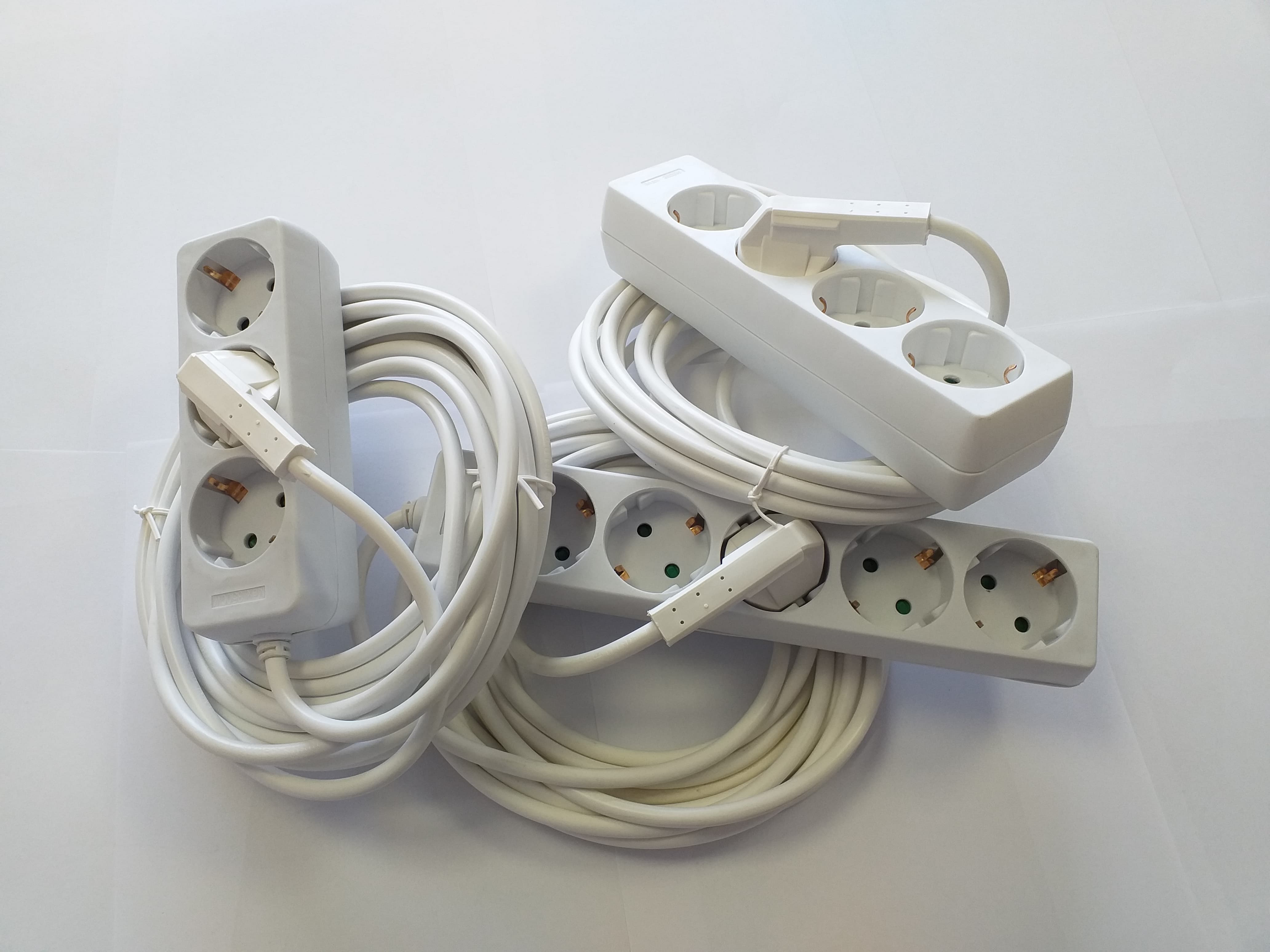

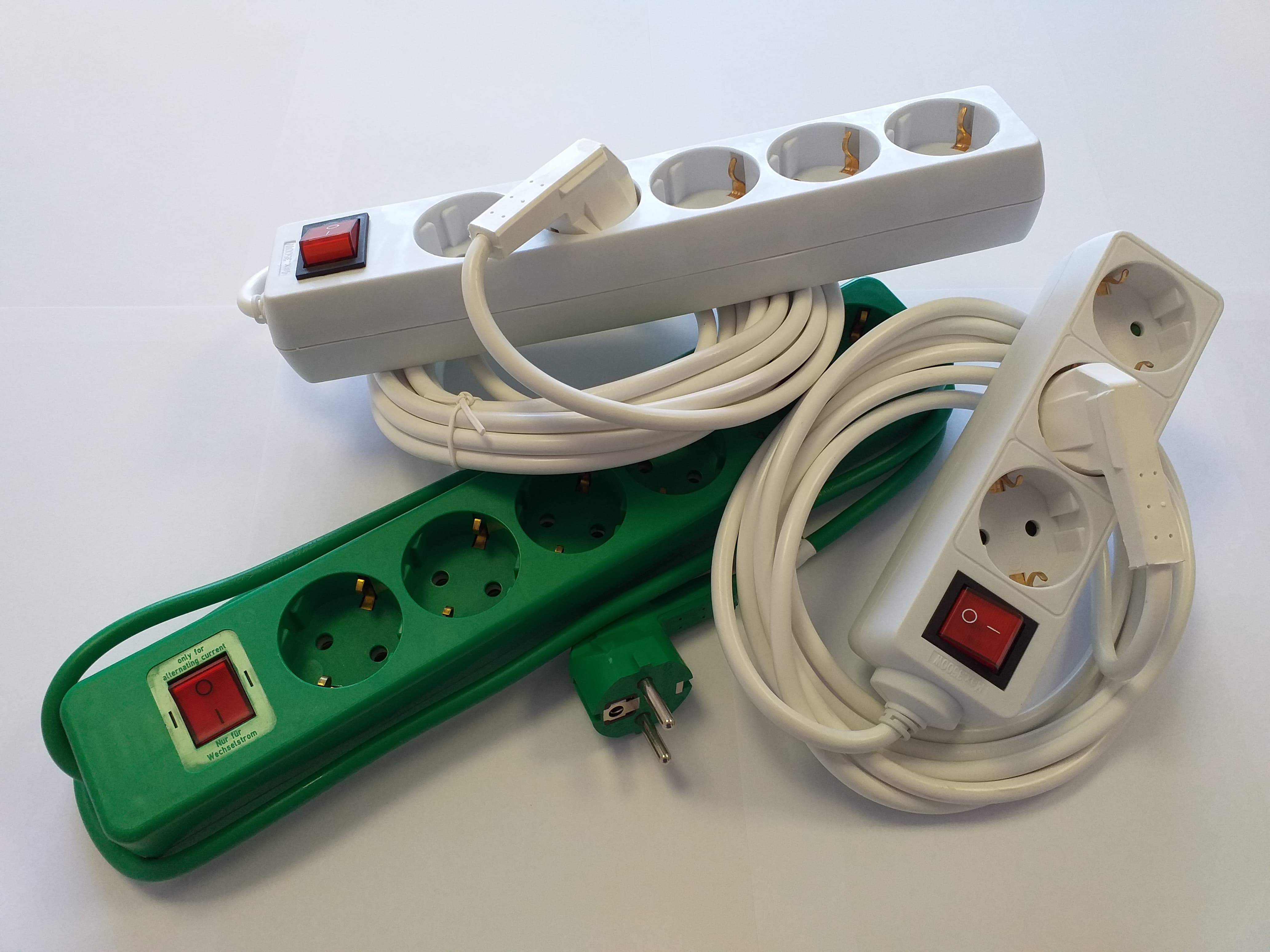

Extension cord with multiple plugs

IDENTIFICATION CODE: -
IN COMPLIANCE WITH: SR CEI 60884:2003

Use

  • For the supply of household electric appliances
  • Cordoanele sunt executate in conformitate cu Directivele Europene :
    2001/95/EC privind securitatea generala a produselor(GPSD) , 2011/65 Directiva RoHS

Materials

  • Flexible cable: HO5VV-F 3G1, 0 mm2; executed in compliance with: SR EN 50525-2-11:2011; DIN EN 50525-2-11 (VDE0285-525-2-11):2012-01; EN 50525-2-11:2011; having the VDE HAR brand
  • Non-removable injected chart: with core of: U = 250 V, I = 16 A ca, 2N+2P type: Taller GmbH: B04.012, Standards: CEE7-Std. Sheet VII, IEC/EN 60884, executed in compliance with SR CEI 60884-1:2003/C91:2007 + A1:2008
  • Plugs type 2P+N of U = 250 V, I = 16 A ca, in compliance with DIN 49440-1 DIN VDE 0620-1:2010
  • Adaptors made of special plastic material resistant to mechanical shocks

Data sheet

  • Rated voltage: 250 V c.a.
  • Nominal charging: cca. 10-16 A c.a.
  • Maximum power: 2300 W
  • Temperature range:
  • For functioning: -15ΩC … +35°C
  • For manipulation: +5°C …+50°C
  • Class of protection: IP20
  • Lengths: 2,5 m; 3,0 m; 5,0 m; 7,5 m; 10 m
  • Other lengths and color: according to the clients’ requests

WARNING

  • It is recommended the use with the cord completely unfolded.
  • Over passing the maximum accepted power can lead to the melting of the cable and can provoke fires
  • It is forbidden the use of the extension cords in wet environments

Product
Documents

Declaration of conformity

Declaration of conformity extension cord with adaptor.pdf

Report of test fire

-

Data sheet

Date sheet – EXTENSION CORD WITH MULTIPLE PLUGS.pdf
